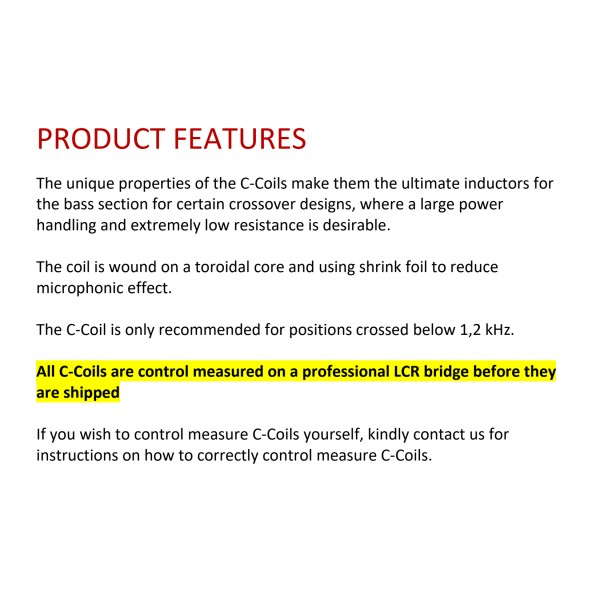

...PRODUCT FEATURES...

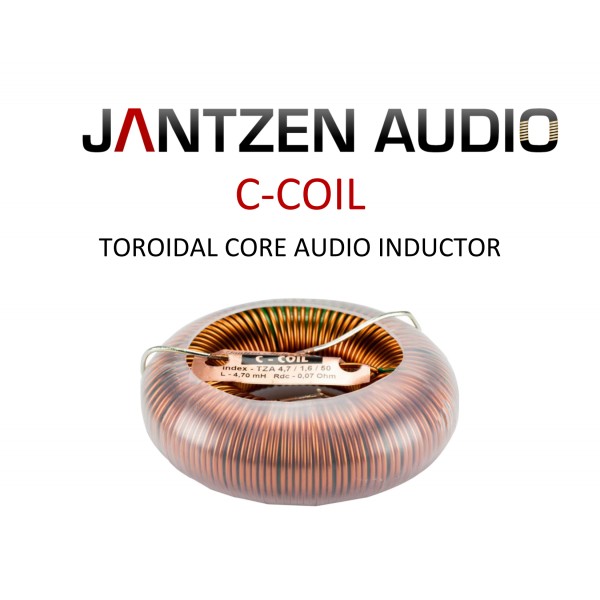

The unique properties of the C-Coils make them the ultimate inductors for

the bass section for certain crossover designs, where a large power

handling and extremely low resistance is desirable.

The coil is wound on a toroidal core and using shrink foil to reduce

microphonic effect.

The C-Coil is only recommended for positions crossed below 1,2 kHz.

All C-Coils are control measured on a professional LCR bridge before they

are shipped

If you wish to control measure C-Coils yourself, kindly contact us for

instructions on how to correctly control measure C-Coils.

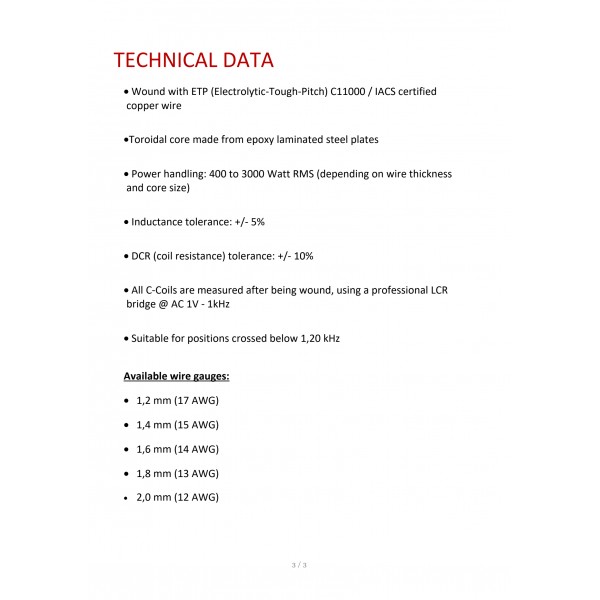

...TECHNICAL DATA...

• Wound with ETP (Electrolytic-Tough-Pitch) C11000 / IACS certified

copper wire

•Toroidal core made from epoxy laminated steel plates

• Power handling: 400 to 3000 Watt RMS (depending on wire thickness

and core size)

• Inductance tolerance: +/- 5%

• DCR (coil resistance) tolerance: +/- 10%

• All C-Coils are measured after being wound, using a professional LCR

bridge @ AC 1V - 1kHz

• Suitable for positions crossed below 1,20 kHz

Available wire gauges:

• 1,2 mm (17 AWG)

• 1,4 mm (15 AWG)

• 1,6 mm (14 AWG)

• 1,8 mm (13 AWG)

• 2,0 mm (12 AWG)

เนื่องจาก Coil ของ Jantzen Audio มีค่าละเอียดมาก

ท่านที่ต้องการค่าใด สามารถสอบถามได้ค่ะ

 ท่านสามารถสั่งซื้อสินค้าได้ที่ช่องทาง

  TEL. 089 515 5788

   Line ID : siamaudiophile
