Jantzen Wax Coil 14AWG

รายละเอียดและราคา

Jantzen Wax Coil 14AWG

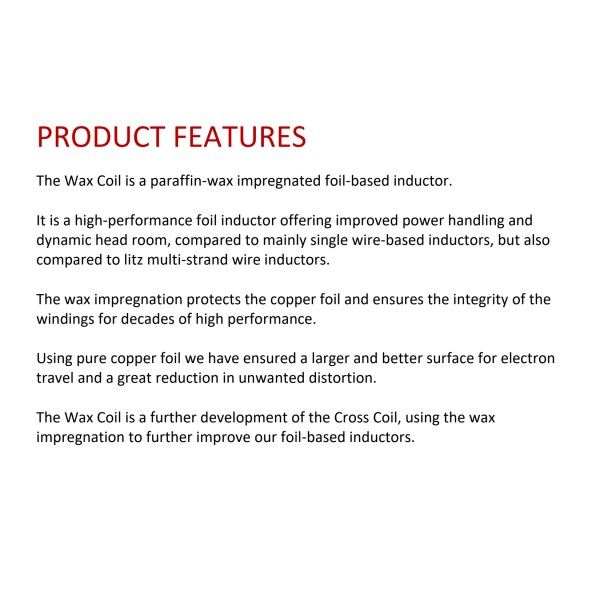

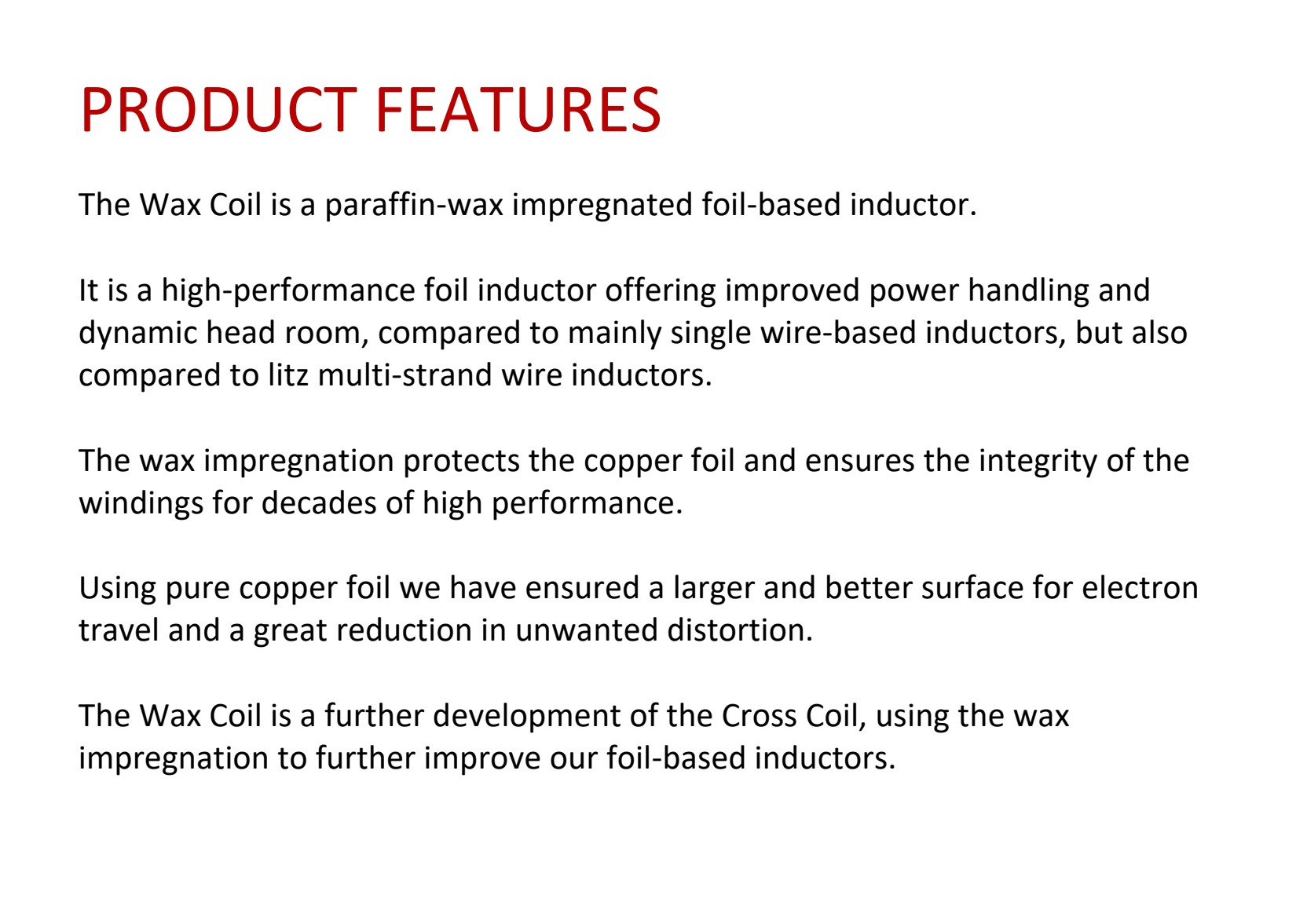

...PRODUCT FEATURES...

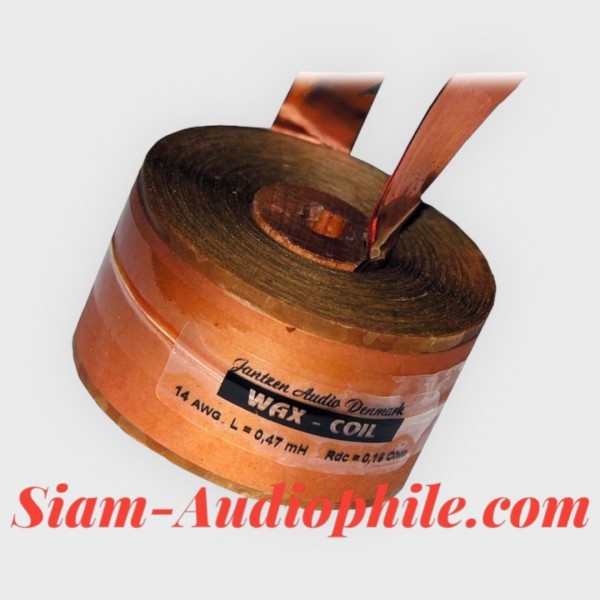

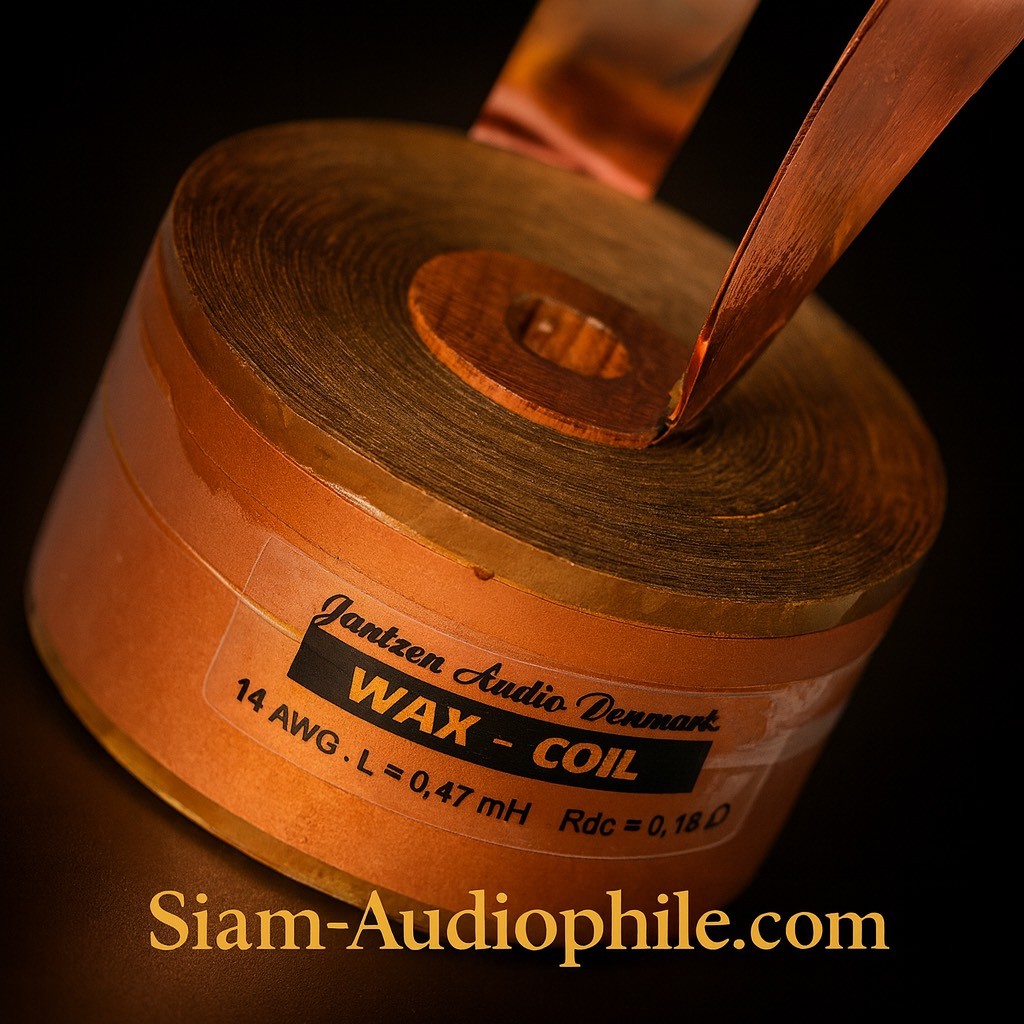

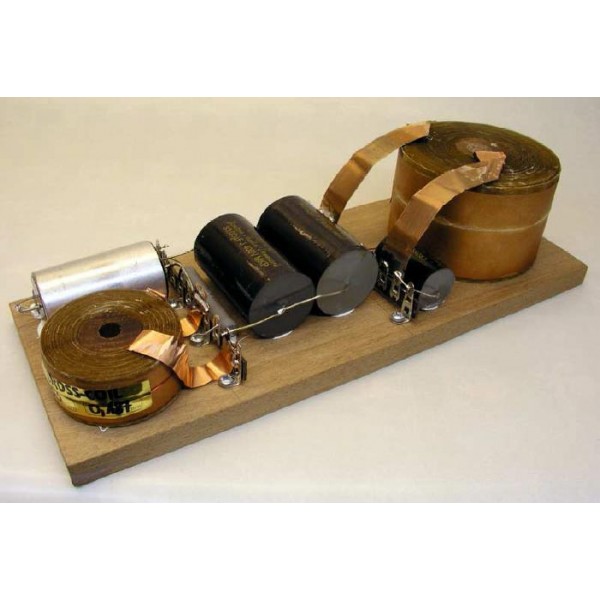

The Wax Coil is a paraffin-wax impregnated foil-based inductor.

It is a high-performance foil inductor offering improved power handling and dynamic head room, compared to mainly single wire-based inductors, but also compared to litz multi-strand wire inductors.

The wax impregnation protects the copper foil and ensures the integrity of the windings for decades of high performance. Using pure copper foil we have ensured a larger and better surface for electron travel and a great reduction in unwanted distortion. The Wax Coil is a further development of the Cross Coil, using the wax impregnation to further improve our foil-based inductors.

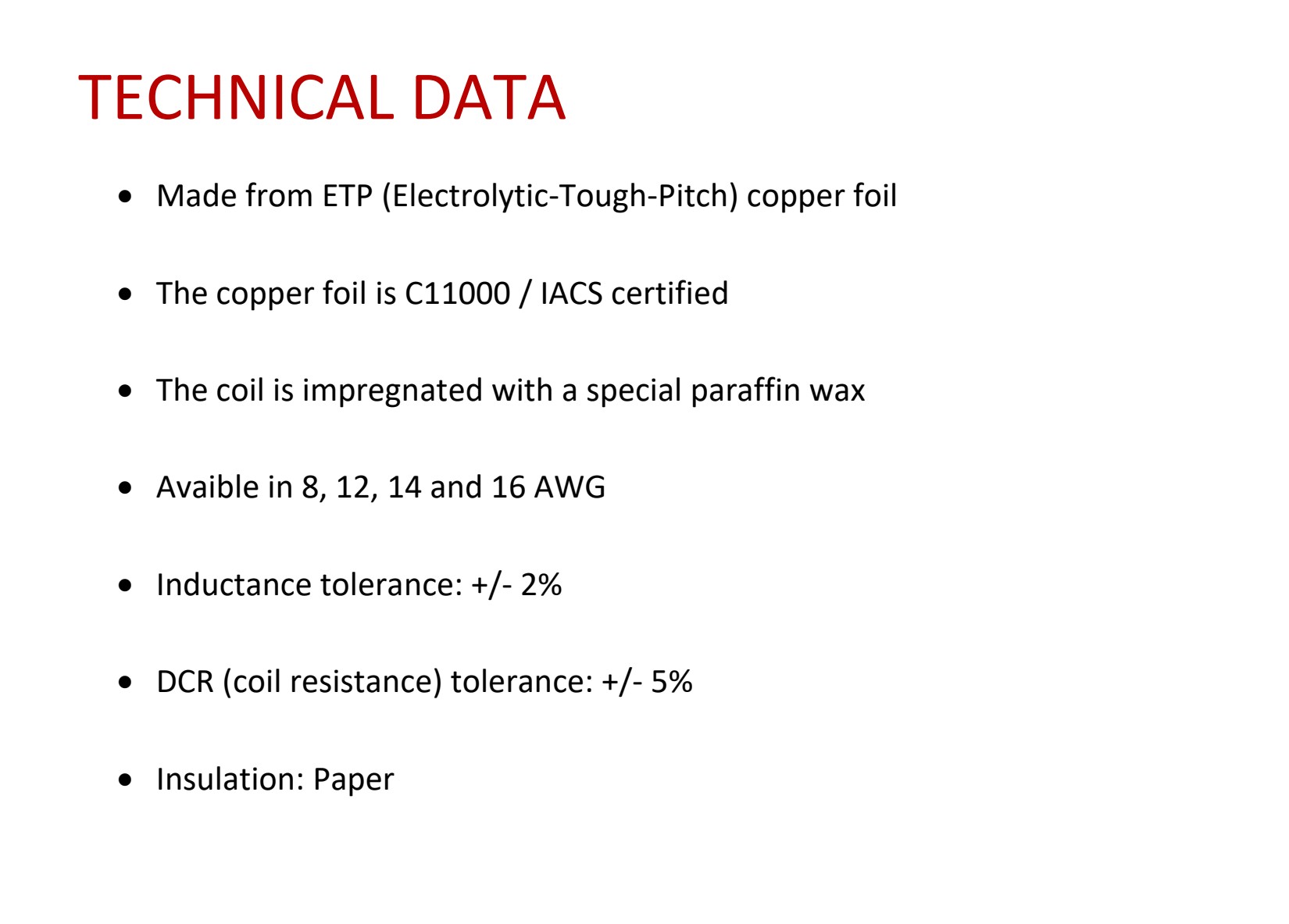

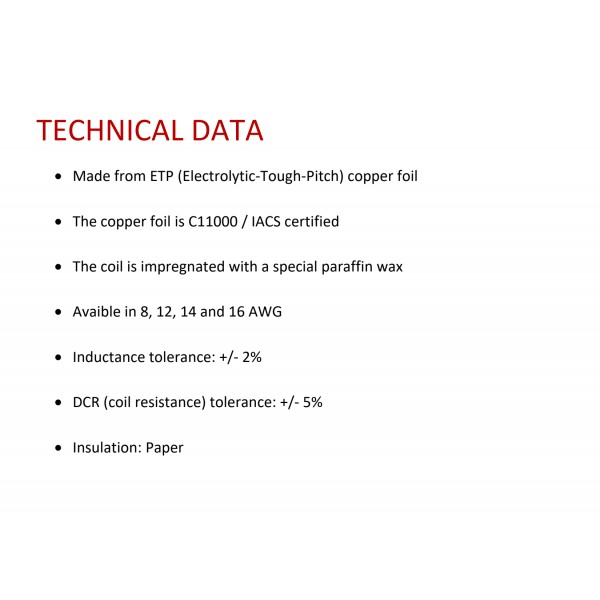

...TECHNICAL DATA...

Made from ETP (Electrolytic-Tough-Pitch) copper foil

The copper foil is C11000 / IACS certified

The coil is impregnated with a special paraffin wax

Avaible in 8, 12, 14 and 16 AWG

Inductance tolerance: +/- 2%

DCR (coil resistance) tolerance: +/- 5%

Insulation: Paper

Estimated maximum power handling:

16 AWG – approx. 350 watts RMS

14 AWG – approx. 500 watts RMS

12 AWG – approx. 650 watts RMS

8 AWG – approx. 850 watts RMS

...PRODUCT FEATURES...

The Wax Coil is a paraffin-wax impregnated foil-based inductor.

It is a high-performance foil inductor offering improved power handling and dynamic head room, compared to mainly single wire-based inductors, but also compared to litz multi-strand wire inductors.

The wax impregnation protects the copper foil and ensures the integrity of the windings for decades of high performance.

Using pure copper foil we have ensured a larger and better surface for electron travel and a great reduction in unwanted distortion.

The Wax Coil is a further development of the Cross Coil, using the wax impregnation to further improve our foil-based inductors.

Jantzen Inductor Wax Coil 14 AWG

		Outer ø	Height	Price/Ea.
[mH]	DCR [Ω]	[mm]	[mm]	(THB)
0.15	0.09	49	37	1,500
0.18	0.10	51	37	1,530
0.22	0.11	54	37	1,650
0.27	0.13	55	37	1,780
0.33	0.14	58	37	1,920
0.39	0.15	61	37	2,040
0.47	0.17	63	37	2,150
0.56	0.18	65	37	2,320
0.68	0.21	70	37	2,500
0.82	0.23	74	37	2,730
1.00	0.27	77	37	2,940
1.20	0.30	81	37	3,200
1.50	0.34	86	37	3,560
1.80	0.38	90	37	3,840
3.30	0.548	106	37	5,570
