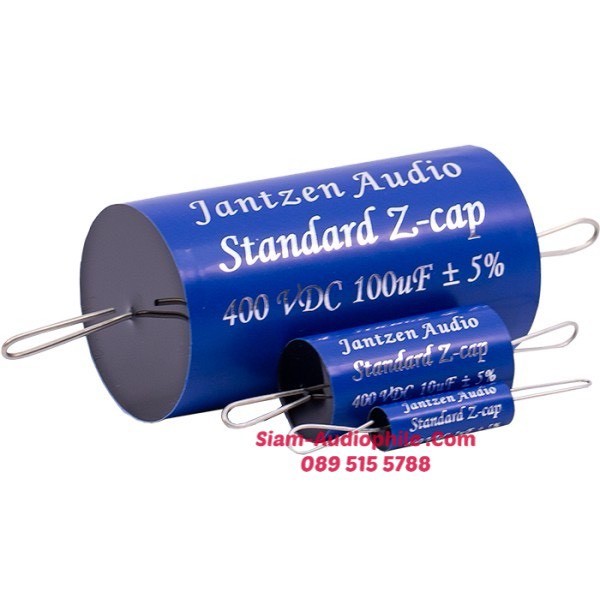

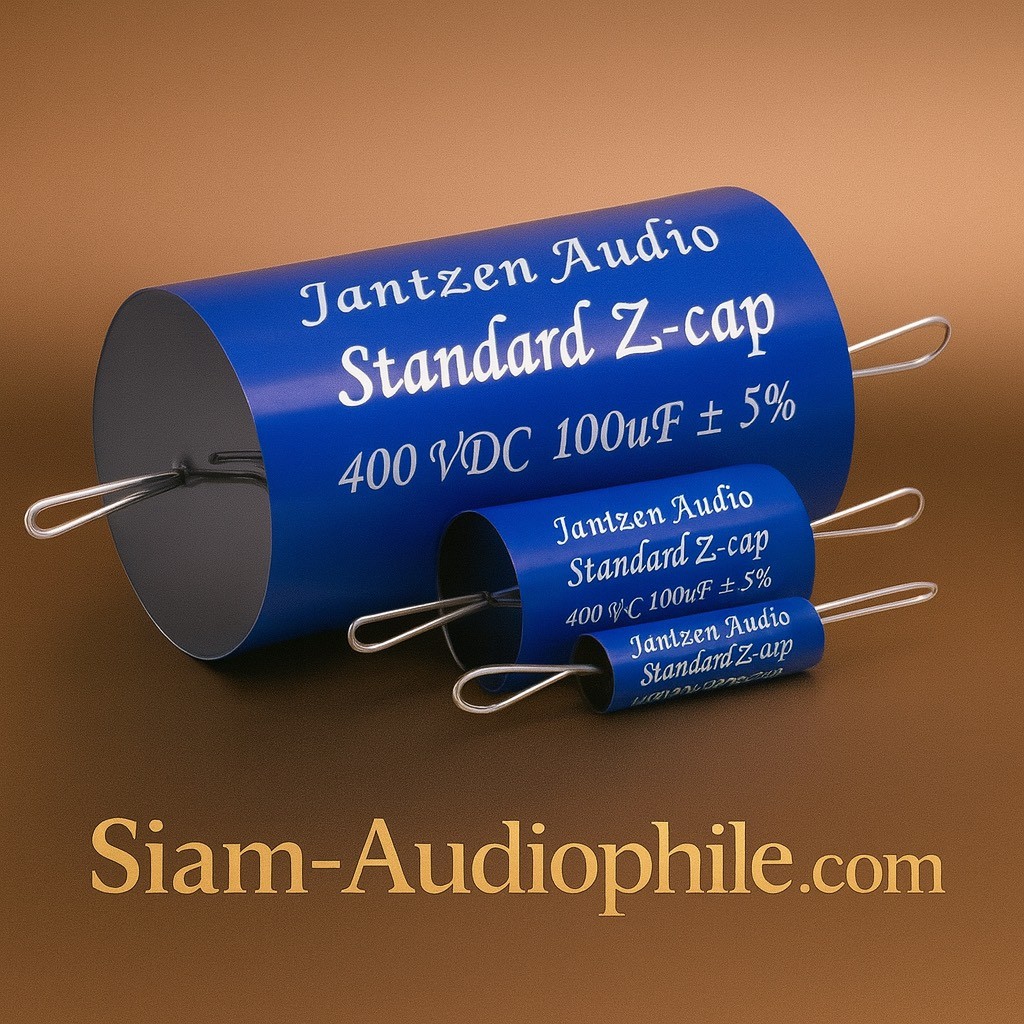

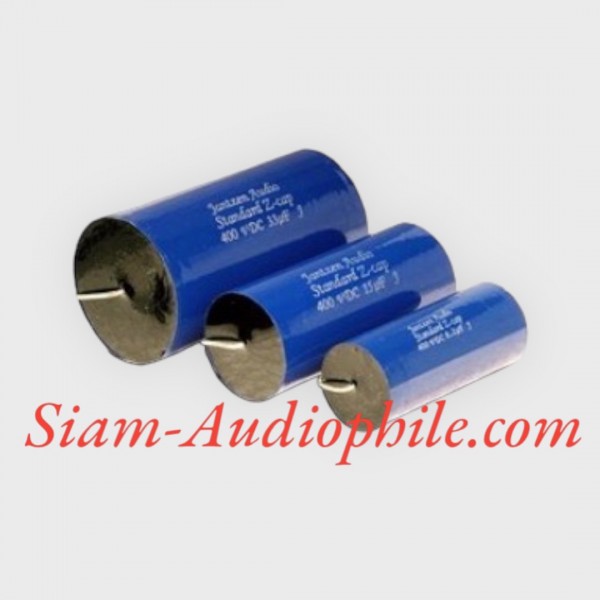

Jantzen Standard Z-cap
STANDARD Z-CAP
Metalized polypropylene foil capacitor.

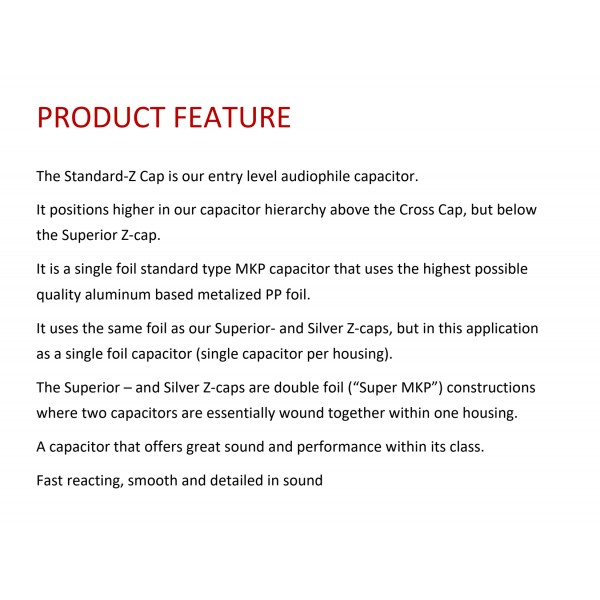

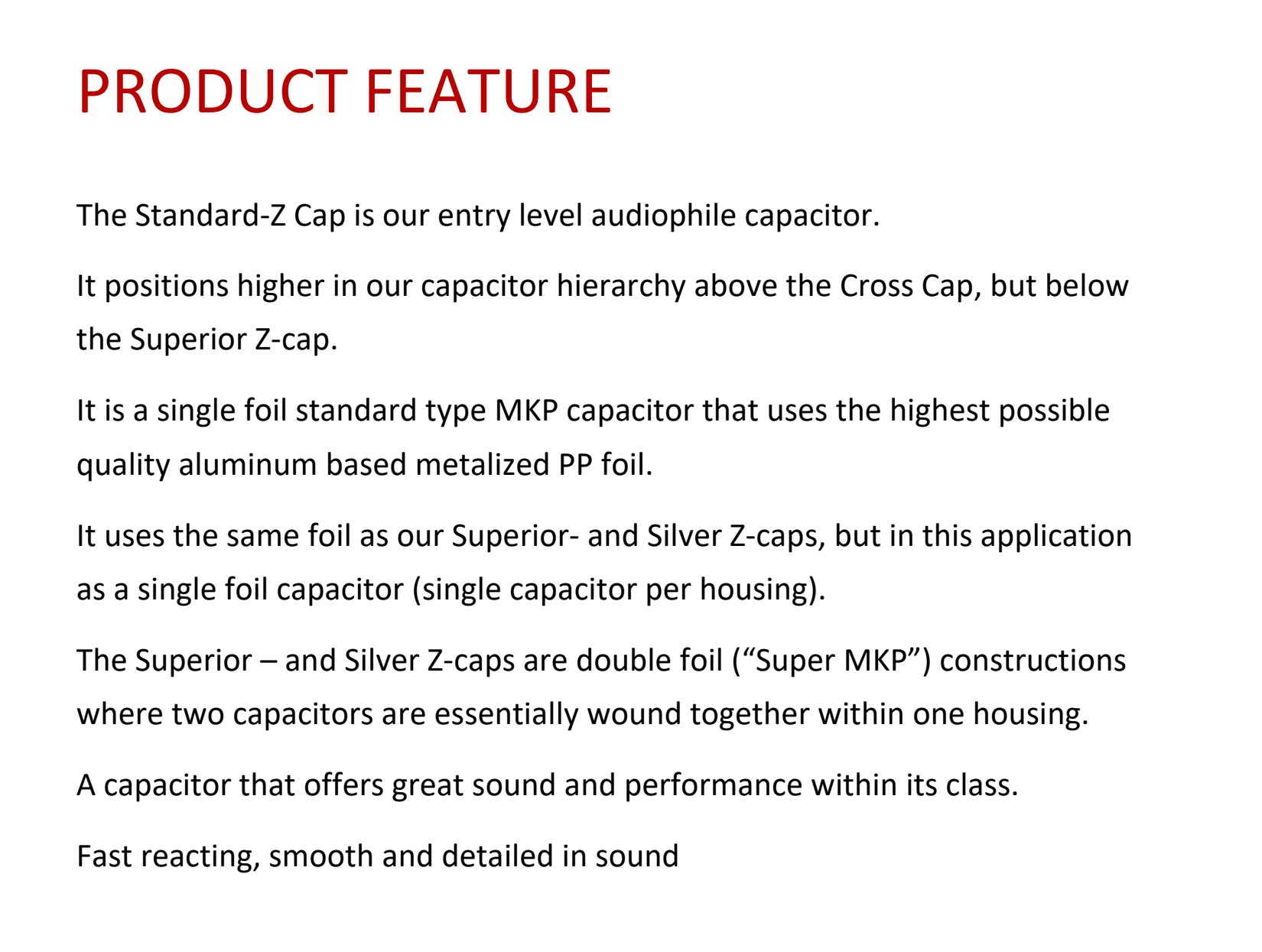

Product Feature
The Standard-Z Cap is an entry level audiophile capacitor.
A capacitor that offers great value for money in its class.
Fast reacting, smooth and detailed in sound, compared to other single foil PP capacitors.
Nitrogen filled instead of dielectric fluid, offering more foil per capacitor, and eliminating risk of evaporation.

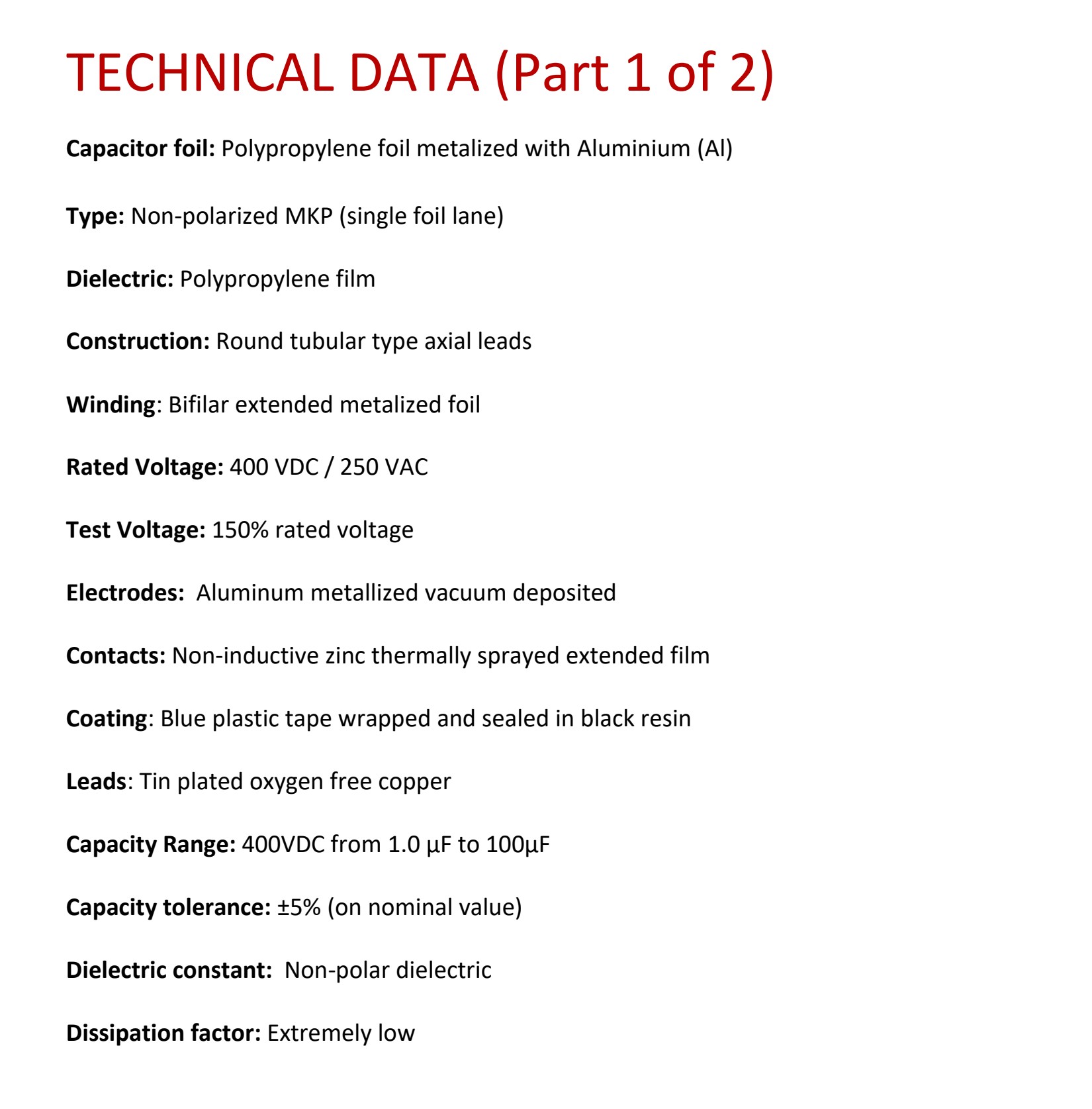

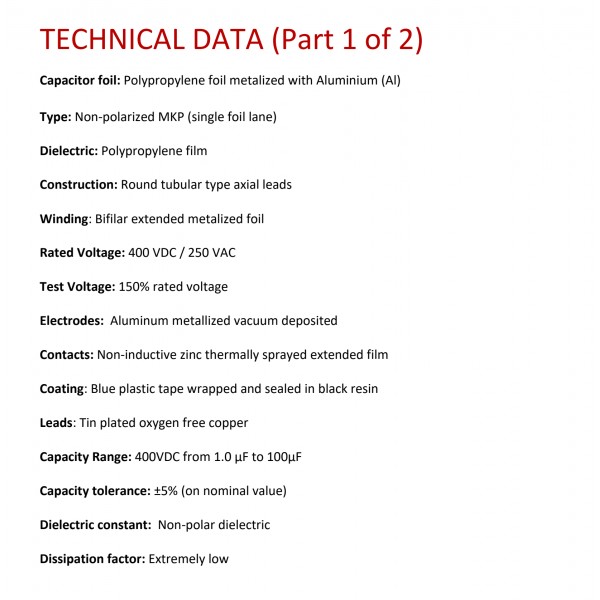

TECHNICAL DATA
| Capacitor foil: | Polypropylene foil metalized with Aluminium (Al) |
| Type: | Non-polarized MKP (single foil lane) |
| Dielectric: | Polypropylene film |
| Construction: | Round tubular type axial leads |
| Winding: | Bifilar extended metalized foil |
| Rated Voltage: | 400 VDC / 250 VAC |
| Test Voltage: | 150% rated voltage |
| Electrodes: | Aluminum metallized vacuum deposited |
| Contacts: | Non-inductive zinc thermally sprayed extended film |
| Coating: | Blue plastic tape wrapped and sealed in black resin |
| Leads: | Tin plated oxygen free copper |
| Capacity Range: | 400VDC from 1.0 μF to 100μF |
| Capacity tolerance: | ±5% (on nominal value) |
| Dielectric constant: | Non-polar dielectric |
| Dissipation factor: | Extremely low |

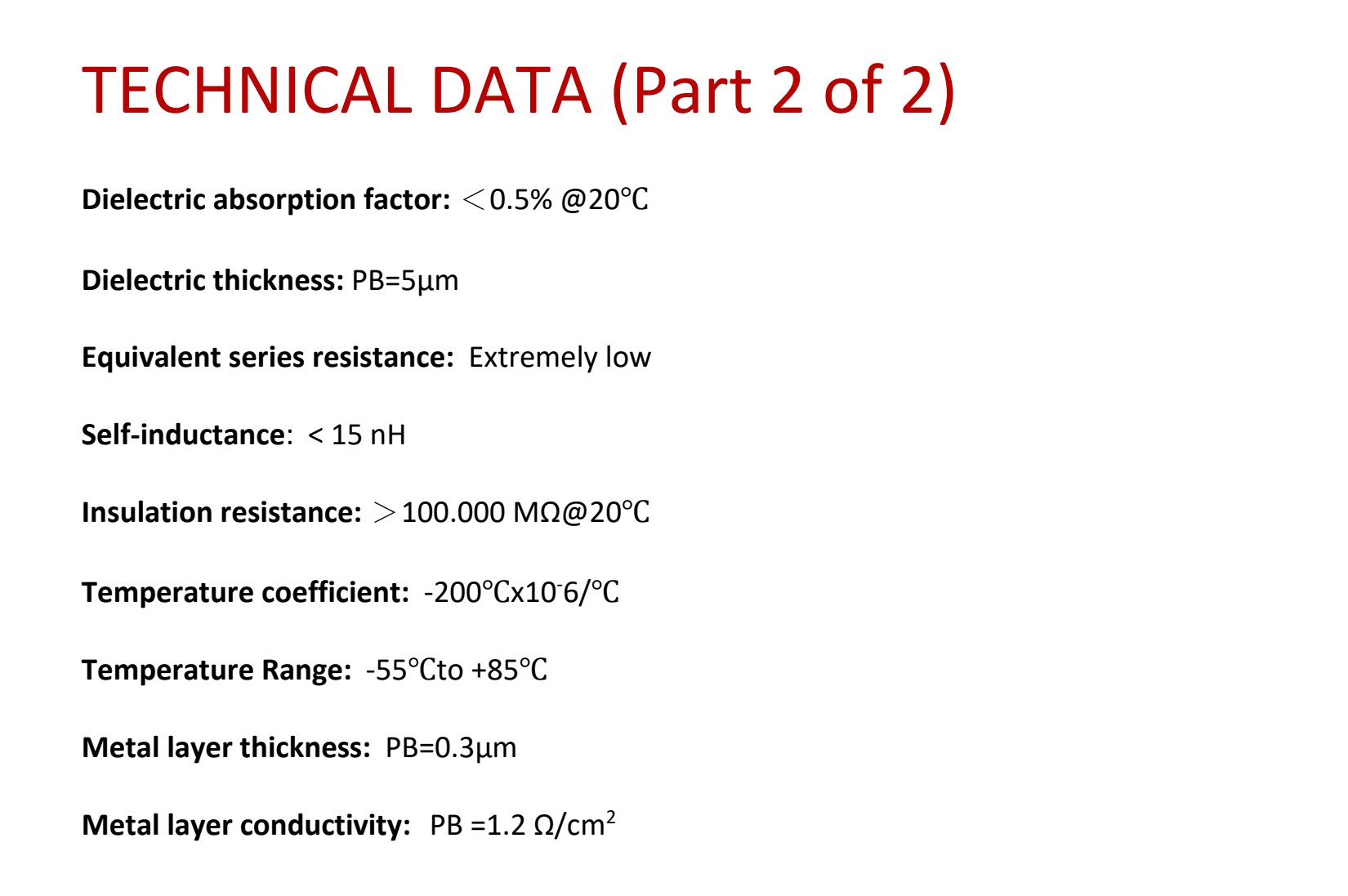

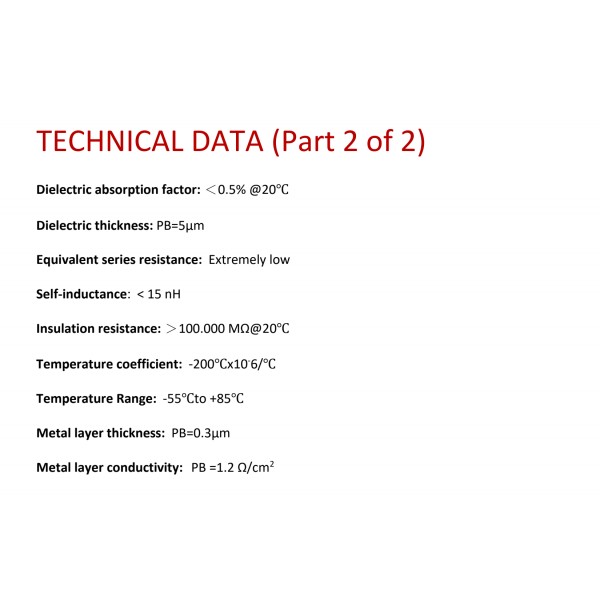

| Dielectric absorption factor: | ＜0.5% @20℃ |
| Dielectric thickness: | PB=5µm |
| Equivalent series resistance: | Extremely low |
| Self-inductance: | < 15 nH |
| Insulation resistance: | ＞100.000 MΩ@20℃ |
| Temperature coefficient: | -200℃x10-6/℃ |
| Temperature Range: | -55℃to +85℃ |
| Metal layer thickness: | PB=0.3µm |
| Metal layer conductivity: | PB =1.2 Ω/cm2 |
ราคา Standard-Z CAP (ปรับราคา มี.ค.2568)
400VDC 5% MKP
Price/Ea.
(THB)
| Capacity [µF] | Dia [mm] | L. (mm.) | ราคา (บาท) |
| 1.00 | 10 | 30 | 130 |
| 1.20 | 10 | 31 | 135 |
| 1.50 | 12 | 31 | 140 |
| 1.80 | 12 | 31 | 155 |
| 2.20 | 13 | 31 | 180 |
| 2.70 | 15 | 31 | 190 |
| 3.30 | 17 | 31 | 205 |
| 3.60 | 17 | 31 | 210 |
| 3.90 | 18 | 31 | 215 |
| 4.70 | 20 | 31 | 255 |
| 5.60 | 21 | 31 | 310 |
| 6.80 | 23 | 31 | 340 |
| 8.20 | 20 | 46 | 370 |
| 10.00 | 22 | 46 | 430 |
| 12.00 | 23 | 46 | 550 |
| 15.00 | 23 | 55 | 610 |
| 18.00 | 26 | 56 | 700 |
| 22.00 | 27 | 60 | 850 |
| 33.00 | 34 | 60 | 1180 |
| 47.00 | 40 | 60 | 1600 |
| 56.00 | 42 | 63 | 1900 |
| 68.00 | 45 | 68 | 2280 |
| 82.00 | 43 | 92 | 2750 |
| 100.00 | 47 | 88 | 3340 |
ท่านสามารถสั่งซื้อสินค้าได้ที่ช่องทาง
TEL. 089 515 5788
Line ID : siamaudiophile
